DONALDSON HYDRAULIC FILTER SPIN-ON

Product Code: DFP550222

$31.74
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

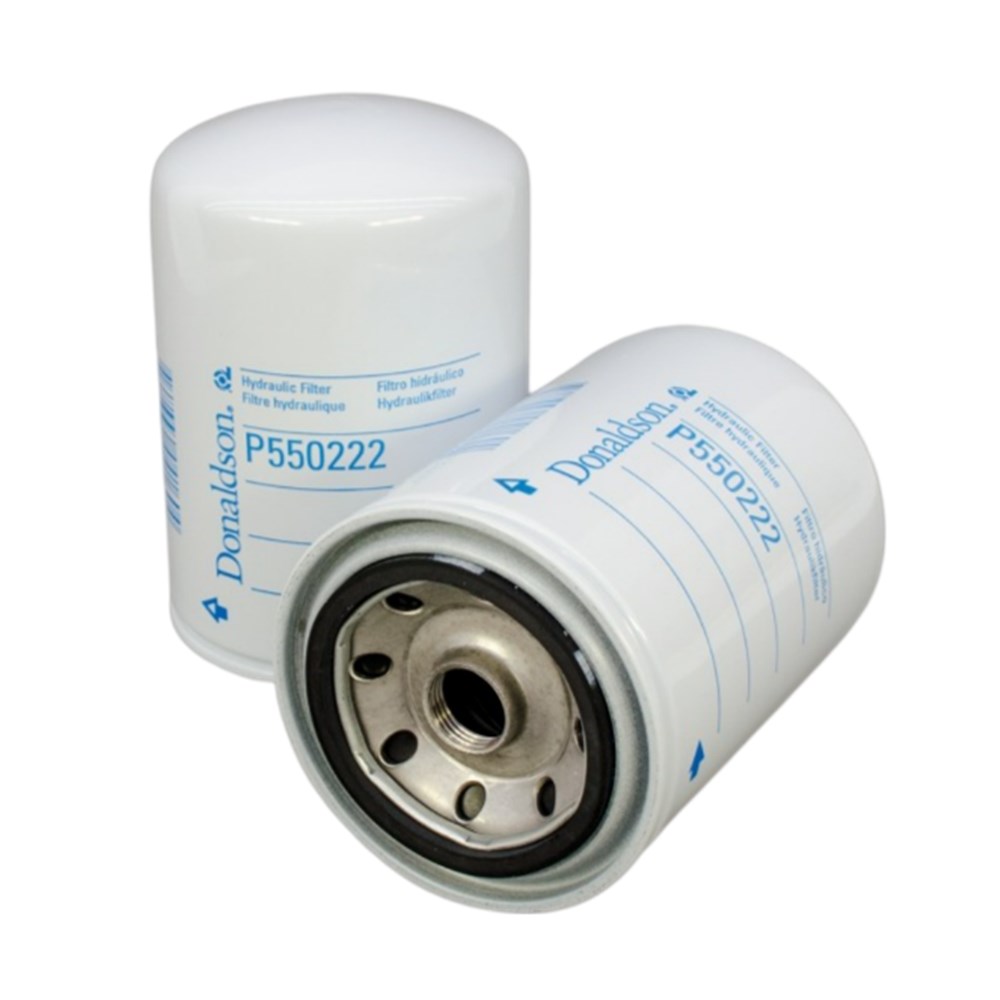

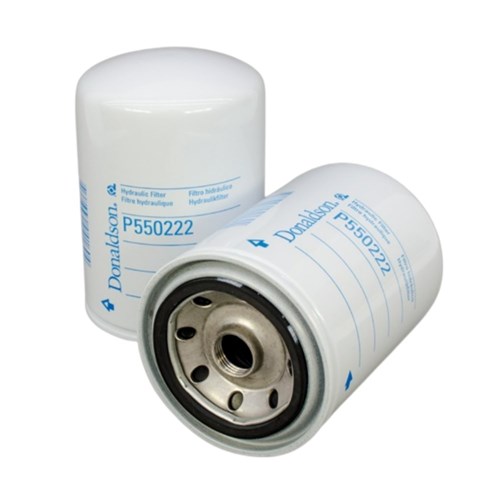

Donaldson Hydraulic Filter, Spin-On - P550222.

Low pressure filters are the most commonly used type of filter in hydraulic circuits, used most often in return line applications. Donaldson low pressure filters are rated for working pressures up to 350 psi (2400 kPa). In-tank and in-line configurations are available to accommodate virtually any application.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Anti-Drainback Valve Yes
Brand Donaldson
Bypass Valve Yes
Bypass Valve Setting HR 0.7 bar (10 psi)
Bypass Valve Setting LR 0.5 bar (7 psi)
Efficiency Beta 2 17 micron
Efficiency Test Std SAE J1858
Gasket ID 62 mm (2.44 inch)
Gasket OD 72 mm (2.83 inch)
Length 136.2 mm (5.36 inch)
Media Type Cellulose
Outer Diameter 93 mm (3.66 inch)
Primary Application ALLISON 25010543
Size (mm) – Height 127
Size (mm) – Length 94
Size (mm) – Width 76
Style Spin-On
Thread Size 3/4-16 UN
Weight (kg) 0.52
Available in Pack Quantity of
1
