  • BENDIX INLINE QUICK RELEASE VALVE M/F

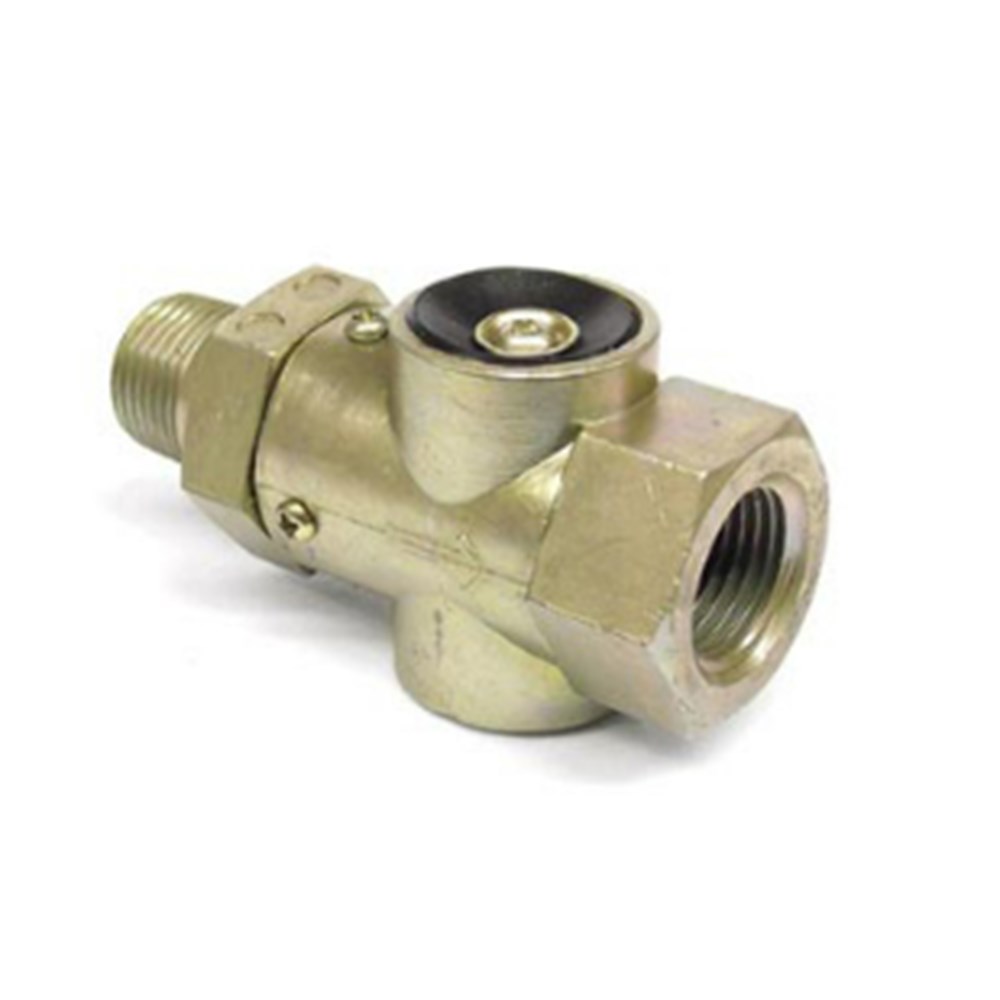

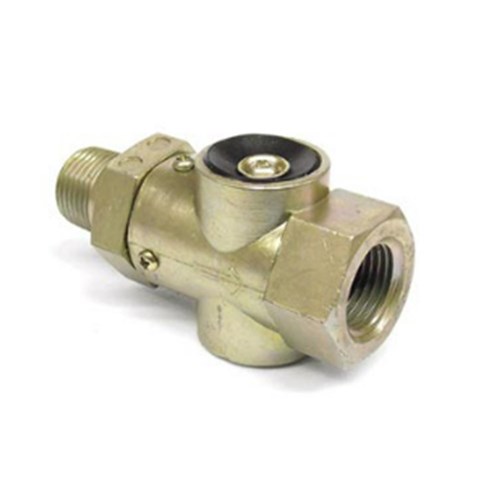

BENDIX INLINE QUICK RELEASE VALVE M/F

Product Code: BEN800333

$86.31
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description
The Bendix® QR-L™ quick release valve is similar to standard quick release valves such as the QR-1™, QR-N™, and QRN-2™. Its purpose is to “speed up” the release of air from air lines and devices it is attached to. Although primarily intended to enhance air system performance by rapidly exhausting supply or control air pressure from vehicle air lines, it can be used in a variety of different applications. It is uniquely suitable as an air system performance enhancement due to its 0 psi crack and differential pressure. Supply and delivery pressure is the same throughout the air pressure range.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand Bendix
Delivery Port 1 1/2-14 NPT (Female)
Exhaust Port Dust Shield (2x)
Height 31.75mm
Length 85.85mm
Maximum Operating Temperature 200 °F (93 °C)
Minimum Operating Temperature -50 °F (-45 °C)
Supply Port 1/2-14 NPT (Male)
Width 43.4mm
Available in Pack Quantity of
1
