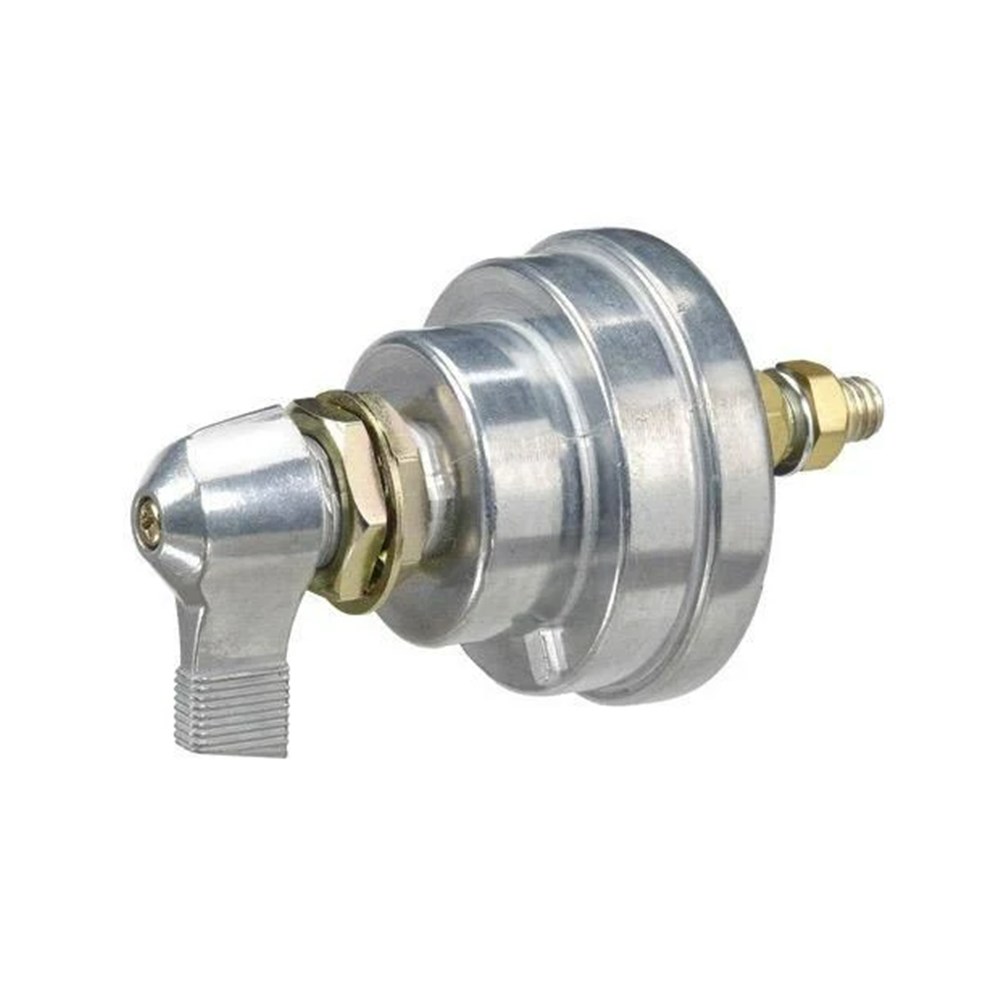

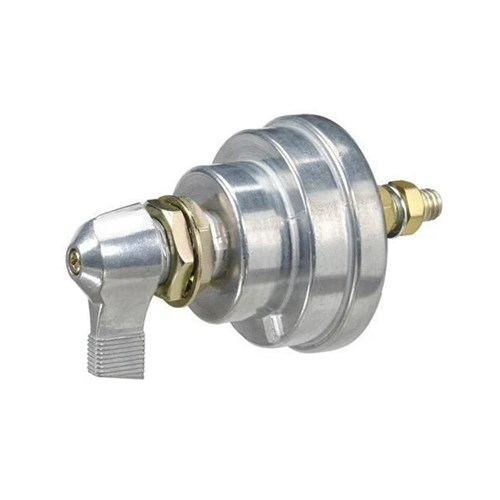

NARVA SWITCH BATT MASTER 6-36V OFF ON

Product Code: ELN61070

$164.74
My Store:
Change Store
Select your store to check the availibility
Increase value Decrease value
Description

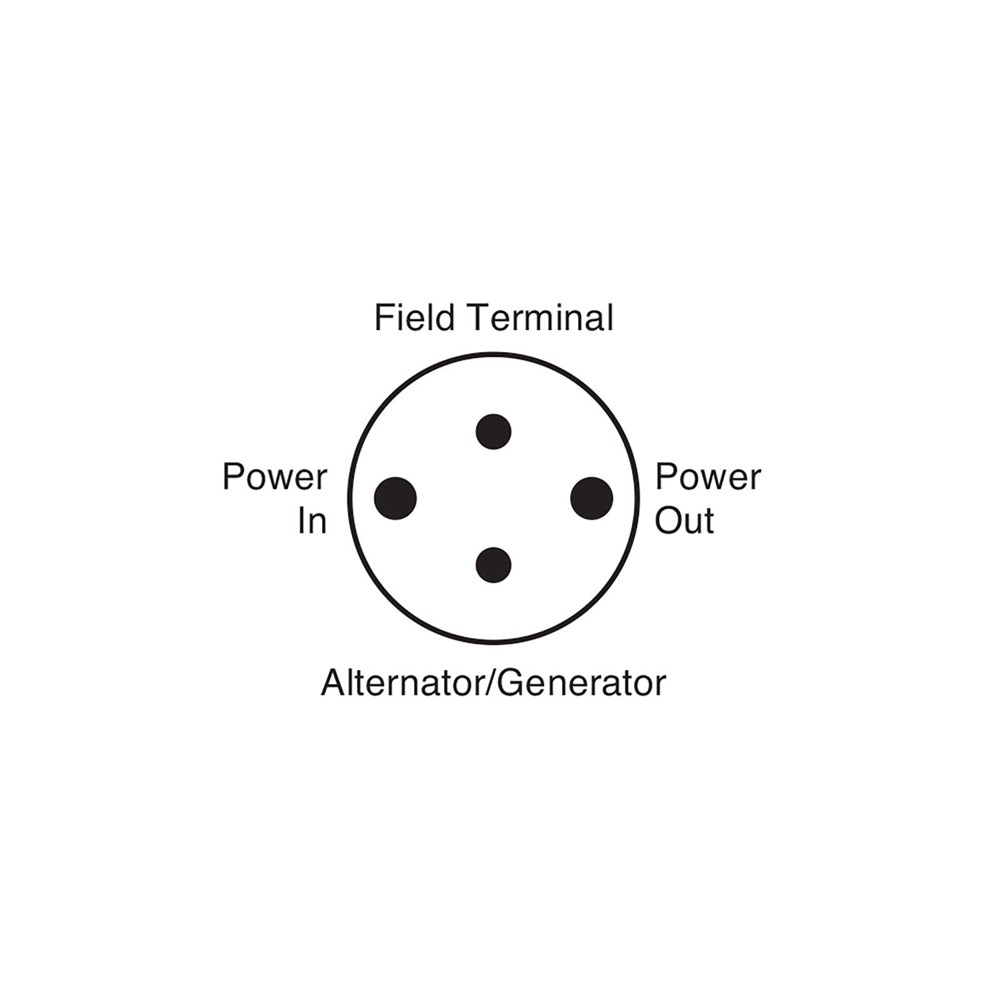

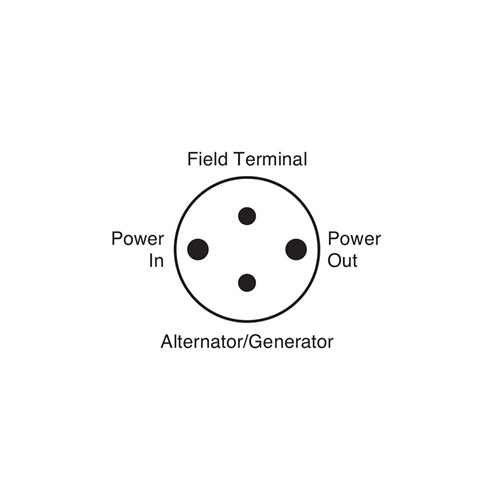

Master disconnect switch with provision for use with alternator/generator field circuit. Mounting opening 19mm dia. Large Terminals: 1000A at 12V for 20 seconds 500A at 24V for 20 seconds 180A at 12V continuous load max. 90A at 24V continuous load max. Small Terminals: 20A at 12V continuous load max. 10A at 24V continuous load max.
  • Key Features
  • Specifications
  • Documents
  • Warranty
Technical Specifications
Brand Narva
Current Draw Large Terminals 1000A @ 12V for 20 secs 500A @ 24V
Available in Pack Quantity of
1
